An encoder/modulator is a device which generates a Digital TV channel (multiplex) from A/V sources like cameras, PCs, or TVSAT receivers.

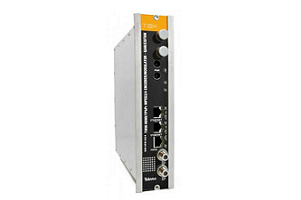

The encoder/modulator Ref. 563832 generates a HDTV channel with two services; each service can come from three different input formats (HDMI, YPbPr or composite CVBS).
On the other hand, Ref. 562822 generates 4 services from 4 different analogue sources (CVBS).
Both modules are able to encode either in MPEG-2 or H.264(HDTV) format.
They can be configured with the PCT5.0 handset or using the Web Server incorporated in each module. This server enables a remote or local management and configuration.
The highest gain of the output signal (up to 115dBµV or 103dBµV with the loop-through active) avoid the need of using additional amplifiers.
You can choose between generating DVB-T (DTT) channels or DVB-C (QAM) to use in Cable TV operator networks
- User friendly configuration using an embedded web server.
- Remote control through the Internet.
- High output gain with no need of extra amplification.
- Configurable COFDM or QAM output.
- Energy efficient due to its low power consumption.
- High quality output (MER>40dB).
- Compatible with many formats, resolutions and TV screen dimensions.
- Fully configurable modulation and codification parameters.
- Compatible with multiple input signals: HDMI, CVBS, YPbPr, SPDIF audio (Ref. 563832), …
- HDCP (High-Bandwitdh Digital Content Protection) incorporated, can be disabled in case of having authorization from the TV provider.
| Reference |
563822 |
| INPUT |
| Video |
4 sets 1 x RCA
(CVBS) |
| Audio |
4 sets 2 x RCA
(L, R) |
| Video + Audio |
– |
| Video Encoder |
| Output format |
MPEG-2 / H264 |
| Resolution |
480i & 576i
Auto-scan of input resolution |
| Aspect ratio |
4:3, 16:9 and pass through |
| GOP |
10, 12, 15, 16, 18, 20, 24 ó 30 |
| Encoder Audio |
| Aspect ratio |
MPEG1 Layer 2 |
| Sampling rate |
kHz |
48 |
| OUTPUT |
| Frequency bands |
MHz |
46…862 |
| Output maximum level |
dBµV |
115 (103 with active loop-through) |
| MER |
dB |
>40 |
| Spurious |
dBc |
-60 |
| QAM |
Modulation |
16, 32, 64, 128, 256 |
| BaudRate |
Mbaud |
6,9 |
| Roll-off |
% |
15 |
| Code |
Reed Solomon |
| Spectrum mode |
Normal / Inverted |
| Frequency steps |
kHz |
250 |
| COFDM |
Modulation |
QPSK, 16QAM, 64QAM |
| Guard interval |
µS |
1/4, 1/8, 1/16, 1/32 |
| FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
| Bandwidth |
MHz |
6, 7, 8 |
| Cell_id |
Configurable |
| Frequency steps |
kHz |
125 / 166 |
| PSI |
Transport Stream ID |
Configurable |
| Original Network ID |
Configurable |
| Network ID |
Configurable |
| LCN |
Configurable |
| NIT |
Manual / Automatic |
| SDT |
Manual / Automatic |
| LCN mode |
Generic / UK / NorDig V1 / NorDig V2 |
| Network Name |
Configurable |
| Service PID |
Configurable |
| Service Name |
Configurable |
| Service ID |
Configurable |
| General |
| Power supply |
Vdc |
24 |
| Consumption |
W |
<16 |
| Ingress Protection |
IP |
20 |
| Dimensions (W x H x D) |
mm |
50 x 216 x 180 |
